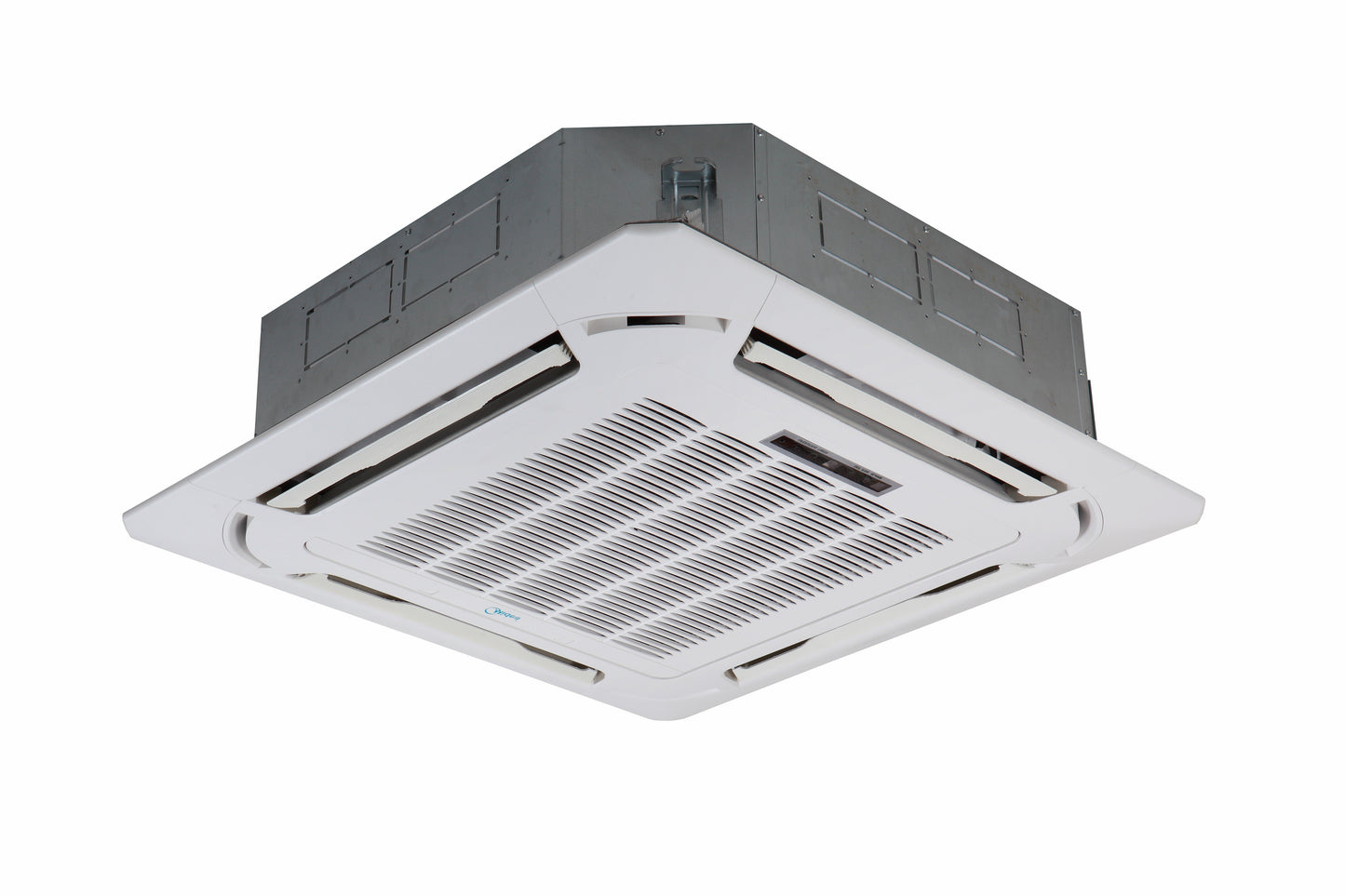

Premier Hyper 12K Cassette

Maximum Flexibility for Optimal Comfort Control

Sizes: 09 / 12 / 18 / 24

Select sizes are ENERGY STAR® certified based on outdoor unit pairing

KEY FEATURES

Built-In Condensate Lift Pump

The Cassette is supplied with a condensate lift pump that is capable of lifting the water 29.5 in. (750 mm.) above the top of the unit.

Integrated Electrical Components

Easy maintenance with the circuit box inside the unit, provides a more compact size for easier installation.

CONTROLS

• Wireless Remote Controller included with indoor unit.
• Optional Wired Remote Controller KSACN0101AAA (Timer Function)
• Wired Remote Controller KSACN0501AAA (7-Day Programmable)

INDOOR FEATURES

• Available in 208/230V
• Up to 22.5 SEER and 12.0 HSPF when paired with DLCSRA outdoor unit
• Modes: Cool, Heat, Dry, Fan, Auto
• Auto-restart function
• Louver control (fixed or swing)
• Three fan speeds
• Outside air intake
• Built-in condensate lift pump
• Follow Me (senses temperature at handheld remote)
• Heating Setback (46° F Heating Mode)
• Quiet indoor operation, as low as 27 dB(A)
• Aluminum Golden Hydrophilic pre-coated fins
• Grille/ceiling panel 2’ x 2’ sizes 09 to 18 KSALG0101AAA
• Grille/ceiling panel 3’ x 3’ size 24 P/N KSALG0201AAA

COMPATIBLE WITH:

• DLCSRA Outdoor Unit - Single Zone
• DLCMRA Outdoor Unit - Multi-Zone
• Wireless Wired Controller Remote Controller (Timer Function) KSACN0101AAA

ACCESSORIES

• Wi-Fi® Kit KSAIF0401AAA
• Wired Controller (7-Day Programmable) KSACN0501AAA
• 24V Interface for third-party thermostat compatibility KSAIC0401230

NOTE: Grille is required; sold separately.

Discontinued. No returns.
